Galvanized Standard Fishing Steel Wire Rope Machine Customized

Brand Name : Beyde

Model Number : 500 1+6

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 200 set/year

Delivery Time : 50 days

Packaging Details : container

Usage : Twisting

Color : Customized

Name : Tubular stranding machine,Copper Aluminum Steel Wire Tubular Stranding Machine

Application : steel

Wire material : stainless steelwire

Taping head pitch : 1mm-630mm

Smallest take-up bobbin : PN1000

Machine central height : 1000mm

Material : Iron and steel

Plc : Siemens

Largest take-up bobbin : PN1600

Maximum bare wire diameter : 4mm

Warranty : 12 Months

Contact Now

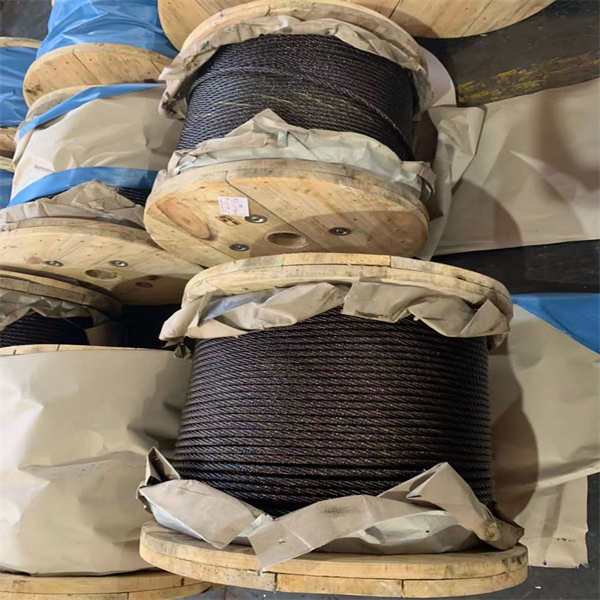

High Tensile 300-1+6F Galvanized standard Fishing Wire Rope

Combination Rope has the same construction as wire rope. However, each steel wire strand is covered with fiber which contributes to the rope having high tenacity with good abrasion resistance. In the process of water use, the rope inside the wire rope will not rust, thereby greatly increasing the service life of wire rope, but also has the strength of the steel wire rope. The rope is easy to handle and secures tight knots. Generally the core is synthetic fiber, but if faster sinking and higher strength is required, steel core can be substituted as the core.

Galvanized Standard Fishing Steel Wire Rope Machine Customized

JGG-315/1+6 Tubular strander

(sub motor linkage)

1.Application:

This machine is mainly used for the stranding of 7-core steel wire. The appearance of the machine is designed by professionals, breaking the conventional production process, with atmospheric appearance, stable high-speed operation and low noise.The whole machine is driven by sub motor and operated by man-machine interface color touch screen. PLC is used to coordinate and manage the start, inching and normal stop of the unit to ensure synchronous performance. The unit operates stably and the electric control system is advanced.

Galvanized Standard Fishing Steel Wire Rope Machine Customized

2. The main technical parameters

2.1	Single wire diameter	φ0.6-φ1.5mm
2.2	Max strand diameter	φ4.5mm
2.3	Max through wire hole diameter	φ10mm (alloy nozzle inside, polishing)
2.4	Strand pitch range	20-100mm (stepless electronic control)
2.5	Cage max rotation speed	1100r/min
2.6	capstan line speed range	69m / min (stepless electronic control)
2.7	capstan wheel diameter	φ600+φ600mm(horizontal two wheel double drive)
2.8	Capstan wheel material	GCr15SiMn (insert ring technology)
2.9	Loading bobbin way in cage	End shaft type, electric clamping
2.10	Bobbin tension form	Hysteresis tension
2.11	Bobbin size in cage	φ300(buyer's standard of drawing
2.12	Core wire Pay-off bobbin	φ300 (buyer's standard of drawing)
2.13	Take-up bobbin size	φ355-500 (buyer's standard of drawing)
2.14	Main motor power	18.5KW(AC)
2.15	Take-up motor	4kw(AC)
2.16	Capstan motor power	15kw (servo motor)
2.17	Main cage cover	Full cover Electric,

Galvanized Standard Fishing Steel Wire Rope Machine Customized

8.1	Bearing brand	(HRB.WZS.LYC)
8.2	Cage tube body bearing adopts	(Luoyang Huigong)
8.3	Main motor	(SIEMENS)
8.4	inverter	(SIEMENS)
8.5	Electrical appliance brand	(Schneider)
8.6	Touch screen	(SIEMENS)
8.7	PLC	(SIEMENS)
8.8	Take-up motor	(SIEMENS)
8.9	Servo motor	(Jiangsu Zhima)
